Selection of appropriate lead sheets and lead foil for radiological protection in medical facilities
The importance of selecting lead sheets and lead foil for radiological protection
Choosing the right protective materials, such as lead sheets and lead foil, is crucial for effective radiological protection in medical facilities. Proper shielding not only protects staff and patients but also ensures compliance with legal regulations. This article discusses how to select these materials correctly, their primary applications, and the factors to consider during selection and installation.

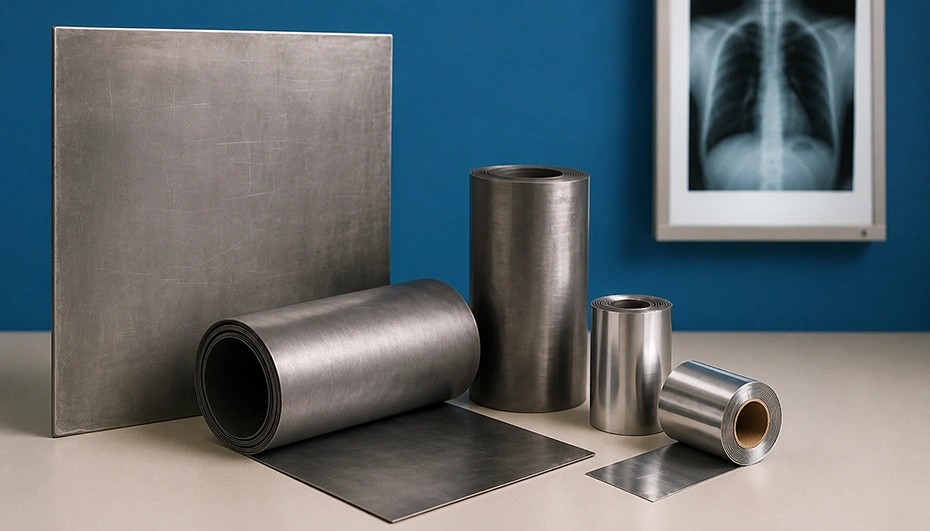

What are lead sheets and lead foil?
Lead sheets and lead foil are commonly used in various elements of medical buildings where radiation protection is essential. Learn more about why radiological protection is important.
Lead sheets are primarily used for protecting walls, ceilings, and floors from ionizing radiation. Due to its physical properties, lead effectively blocks X-rays and gamma rays, making it ideal for radiological protection.
Lead foil, on the other hand, is a thinner, more flexible form of lead, used for protecting smaller surfaces like doors, windows, and various medical devices. Its flexibility and lightness allow it to easily conform to irregular surfaces, making it a versatile protective material. Self-adhesive lead foil is a specific type that, thanks to its adhesive layer, is easy to install and perfect for quick applications.
Characteristics of lead sheets in radiation protection
Lead sheets are highly effective barriers against X-ray and gamma radiation due to their high density, which allows them to absorb ionizing radiation effectively. The thickness of the lead sheet is critical for protection efficiency; typical thicknesses range from 0.5 mm to several millimeters, depending on the type and energy of the radiation.
Radiation Protection Calculations
Calculations for radiological protection are based on the principle that thicker lead sheets provide better protection. For example:
- For X-ray radiation with an energy of 100 kVp, 1 mm of lead sheet can reduce radiation intensity by about 95%.
- For higher-energy gamma radiation, such as from the Co-60 isotope (1.25 MeV), greater thicknesses are required; achieving similar reduction levels may require 6-7 mm of lead.
The selection of thickness must consider specific requirements for the level of protection and type of radiation in a given medical facility, with calculations typically performed by medical physics engineers who design radiological shields according to applicable standards.
The provided information on radiation reduction by lead sheets and foil is based on general principles of radiation physics, although specific values may vary depending on sources and conditions.
- For X-ray radiation with an energy of 100 kVp, 1 mm of lead sheet can reduce radiation by about 90-95%, which aligns with literature data. For higher-energy gamma radiation, especially from Co-60 (1.25 MeV), significant thicknesses like 6-7 mm of lead may be required to achieve similar reduction levels.
Applications of lead sheets and lead foil
- Walls and ceilings: Lead sheets are most commonly used to protect large, fixed surfaces like walls and ceilings in treatment rooms with equipment emitting strong radiation, such as X-rays. The thickness of the lead sheet is selected based on the intensity of the radiation and the specifics of the room. In X-ray rooms, thicker sheets are required to ensure adequate protection.
- Floors: In some cases, especially in rooms on lower floors, radiological protection of floors is necessary. Lead sheets can be used here to prevent radiation from penetrating to lower levels of the building.
- Doors and windows: Lead foil, especially self-adhesive lead foil, is ideal for protecting doors and windows in rooms where frequent opening and closing is necessary. Lead foil allows for flexible protection of these elements without the need for heavy, massive materials.
How to select the thickness of lead sheets and lead foil?
Choosing the appropriate thickness of protective materials, such as lead sheets or lead foil, is crucial for ensuring effective radiation protection. This process involves several key steps:
- Assessment of the radiation source: First, analyze the type and intensity of radiation emitted by devices used in the room. For example, X-ray machines, CT scanners, or linear accelerators emit different levels of radiation, directly affecting the requirements for shielding thickness.
- Standards and regulations: The thickness of lead sheets and lead foil must comply with current standards and legal regulations on radiological protection. In Poland, as well as in other EU countries, strict guidelines specify minimum protection requirements depending on the type of installation and radiation levels.
- Shield design: Based on the collected data, engineers specializing in medical physics design appropriate shields. Design includes calculations regarding material thickness and decisions on the placement of lead sheets or lead foil in the room. Well-designed shields provide maximum protection with optimal material usage.
Selection of self-adhesive lead foil for radiological protection
Self-adhesive lead foil shares similar properties with traditional lead sheets and foil but stands out for its easy installation thanks to the adhesive layer. It is available in various thicknesses, allowing it to be tailored to the radiation level and specifics of the location. Surfaces for applying the foil should be smooth and clean to ensure strong adhesion. The thickness of the foil is determined based on calculations performed by radiological protection inspectors, just like other protective materials. This makes self-adhesive foil a versatile and practical choice in radiological protection.
The role of rradiological protection inspectors and specialists
The installation and operation of radiological shields require supervision by qualified specialists.
- Radiological protection inspectors: These individuals are responsible for compliance with standards and regulations regarding radiological protection. Their tasks include risk assessment associated with radiation and checking the correctness of shield installations, such as lead sheets or lead foil. Inspectors regularly conduct audits and inspections to ensure protection levels are sufficient.
- Medical physics engineers: These specialists design radiological shields and perform necessary calculations to determine the appropriate thickness of materials for specific applications. Their work is crucial to ensuring that shields such as lead sheets or lead foil effectively protect against radiation.
Conclusion
Selecting the appropriate lead sheets and lead foil is a fundamental part of designing and installing radiological protection. Understanding the specifics of radiation and using materials that meet standards are key to ensuring safety in medical facilities.
